Design Resource Manual

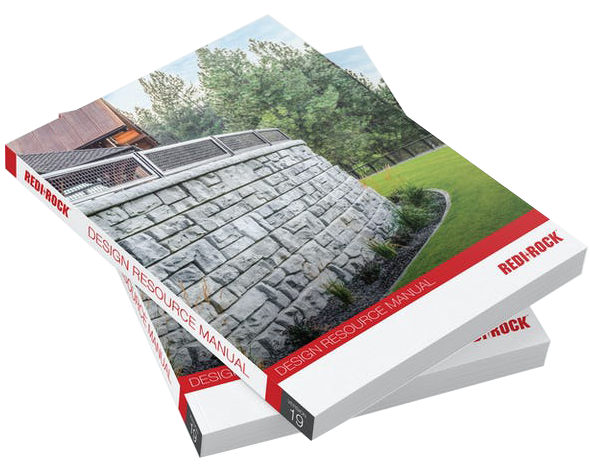

Designing a retaining wall has never been easier. Redi-Rock NSW supplies easy-to-use retaining wall design software and an accompanying design resource manual. This manual includes everything required to design a retaining wall, including an overview of every Redi-Rock block, preliminary design charts, block infill weights, setback options, construction details, testing data, and more.

Design resource manual

Installation Video Guides

Installing Redi-Rock’s signature one-tonne Lego block retaining walls is easy, and made more efficient with our installation video guides.

INSTALLATION OVERVIEW

HOW TO DESIGN REDI-ROCK

Design and Analysis Software

Redi-Rock NSW can assist during the design stage of your project. We partner with our clients early in a project to ensure the technical design of your wall meets with your outcome requirements.

Software Downloads

Redi-Rock Design Software

Design and alayse Redi-Rock Gravity Walls

Redi-Rock Wall Professional

Design and analyse any MSE or PMB gravity wall

GEO TECHNICAL

Redi-Rock Design Software

Design and alayse Redi-Rock Gravity Walls

Redi-Rock Design Software

As a wall designer, you're tasked with creating buildable space whilst providing security and peace of mind. We know that designing a structurally sound retaining wall that's within budget can be a tall task, and that's why we've partnered with the experts at Fine Software to create Redi-Rock wall software based on the GEO5 platform of geotechnical engineering software.


Redi-Rock gravity wall design software gives you an optimised tool for designing your next gravity wall. The free software includes:


  • ​Gravity wall analysis module
  • Bearing capacity & slope stability modules
  • ASD or LRFD calculation capacity

  • 3D visualisation


Thousands of engineers around the world download the freeware every year, click here to transfer to the Redi-Rock International site, fill out the form and download your copy of Redi-Rock wall free software today.

Redi-Rock Wall Professional

Design and analyse any MSE or PMB gravity wall

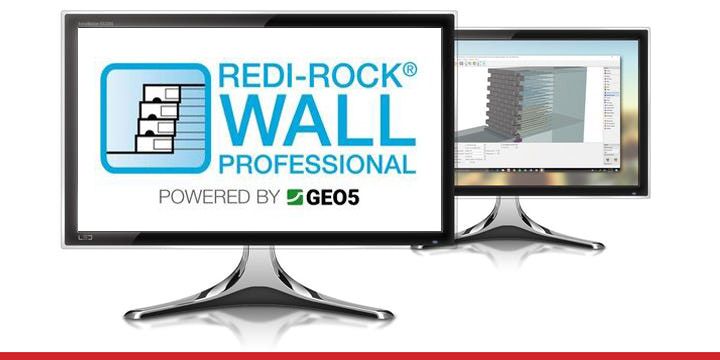

Redi-Rock Wall Professional

For larger customers with multiple projects, we offer a free comprehensive and professional software package developed by the geotechnical software experts at GEO5. Redi-Rock wall professional makes it easy to model and analyse both gravity and MSE wall sections using positive connection (PC) blocks.


Redi-Rock wall analysis software is a package of programs for designing advanced retaining walls using the Redi-Rock retaining wall system. The package supports the calculation of gravity walls with Redi-Rock blocks, as well as the calculation of MSE walls with Redi-Rock positive connection (PC) blocks and Mirafi geogrids.


This package also supports 3D visualization and consists of the full version of GEO5s spread footing, settlement and slope stability programs. The main software, which is provided at no charge, includes:

  • Calculation of MSE walls with Redi-Rock Positive Connection (PC) blocks and Mirafi geogrids
  • Database of blocks and setbacks produced by Redi-Rock Inc.
  • Analysis of Gravity Wall or MSE Wall
  • Verification analysis can be performed employing EN 1997-1, LRFD or classical approach (limit states, factor of safety)
  • Verification of wall against slip and overturning
  • Verification of slip and overturning of arbitrary part of the wall (dimensioning)
  • Verification of bearing capacity of foundation soil in program Spread Footing
  • Verification of slip on geo-reinforcement, tensile and pull-out resistance of geo-reinforcement
  • Verification of connection strength
  • Verification of internal stability
  • For extensible reinforcements
    • Standard – straight slip surface
    • AASHTO – Extensible
    • FHWA NHI-10-024
  • For inextensible reinforcements
    • AASHTO – Inextensible
    • JTGD30 – 2004 Highway China Code
    • TB 10025 Railway China Code
    • BS 8006 – Coherent Gravity Method
  • Verification of global stability of a wall using a program Slope Stability
  • Earthquake effects (Mononobe-Okabe, Arrango, Chinese standards, NCMA)
  • Analysis of settlement in program settlement

GEO TECHNICAL

Construction Details

Explore our Redi-Rock block and retaining wall options below to find out more detail on each including weight, dimensions, and building requirements:

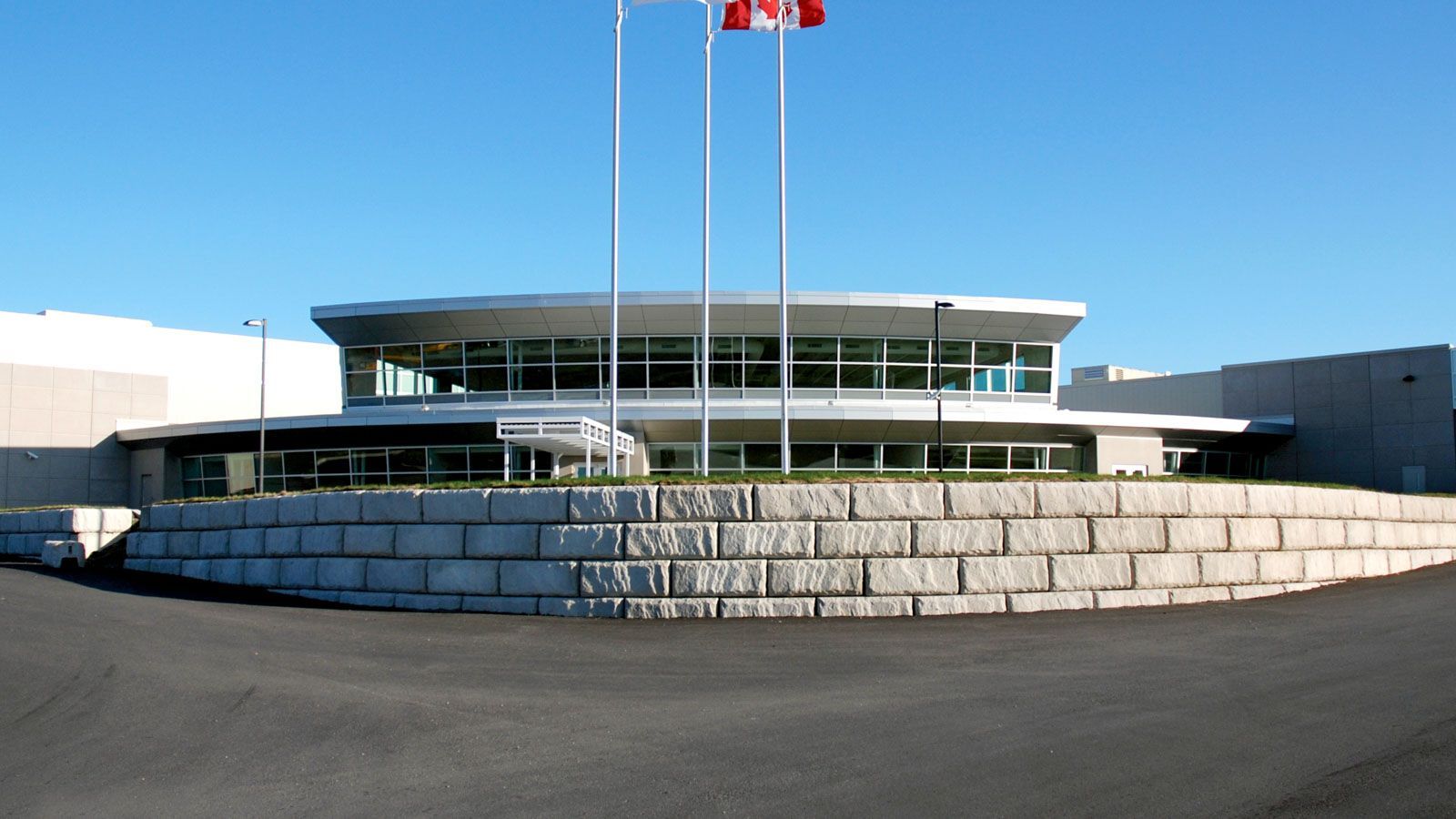

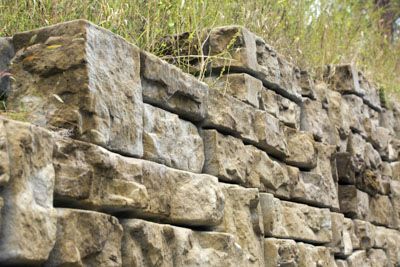

Gravity Walls

Reinforced Walls

Combination Walls

Freestanding Walls

Water Applications

Foundation & Drainage

Finishes & Guards

Corners & Curves

Transitions

Pipes, Utilities & Obstructions

Legacy Details

Gravity Walls

Reinforced Walls

Combination Walls

Freestanding Walls

Water Applications

Foundation & Drainage

Finishes & Guards

Corners & Curves

Transitions

Pipes, Utilities & Obstructions

Legacy Details

Block Library

The Redi-Rock block library and block drawings include an overview of each Redi-Rock block and accompanying diagrams.

Specification Sheets

View our guide specifications and Redi-Rock product data sheets, including design details here:

Specifications

Gravity Specifications

XL Specifications

HC Design Details

Product Data Sheets

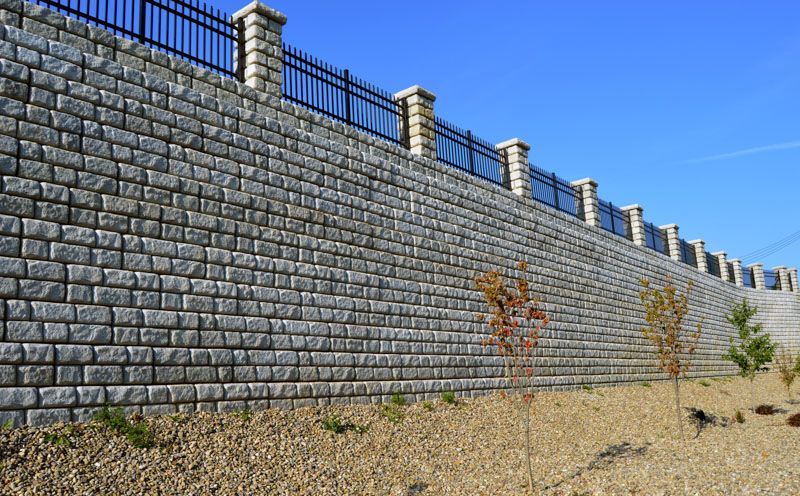

Freestanding wall

Product Applications

Find out how engineers, developers, installers, and homeowners can use Redi-Rock for a wide variety of applications in our Redi-Rock applications information sheets.


  • Retaining walls in water

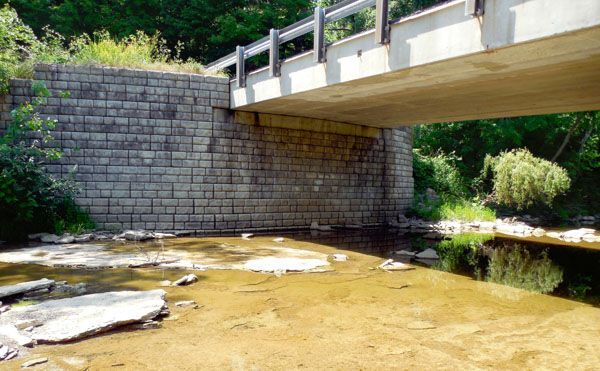

  • Bridge and highway retaining walls
  • Rail retaining walls
  • Walls for developments
  • Residential walls
  • University and campus retaining walls
  • Walls for municipalities and government agencies
  • Power industry walls

Testing Reports

See our connection and interface shear testing positive connection reports, type 1-AT reports and flood wall test reports here.
